Sale!
AIP Orb Panel
AIP Orb Panel - Image 2

AIP Orb Panel

$82.00 – $258.00

AIP ORB provides an all-in-one solution of roofing, insulation and ceiling sheet. Prices are per square metre. $/M2 (Excluding delivery and GST)

Square metre length of project
Square metre width of entire project
Estimated number of panels required
Product total
Options total
Grand total
SKU: ORB OFF WHITE-1 Categories: , Tags: , , , ,

Description

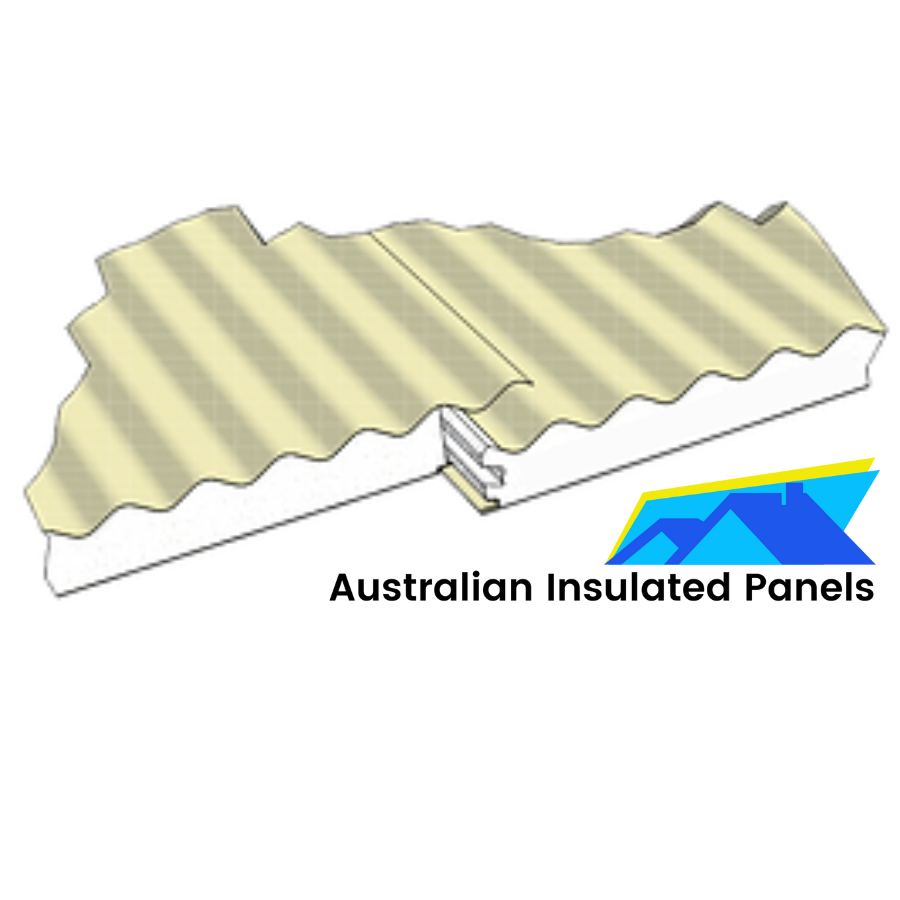

AIP Orb panel has a classical corrugated appearance and provides an all-in-one solution of roofing, insulation and ceiling. With superior spanning capabilities compared to traditional roofing products, AIP Orb is the cost effective and time efficient solution to your roofing and / or patio project.

AIP Orb consists of three main components :

  • a durable steel roof sheet

  • a choice of four (4) insulated core options, Expanded Polystyrene Fire Retardant Grade (EPS-FR), Thermosetting Phenolic Composite (TPC), Mineral Wool (MW) and DualCore (DC), to suit the specific requirements of your project

  • a smooth, easy to clean ceiling finish, bonded together from the factory

AIP Orb comes with foam profiled to match the corrugations – this reduces corrosion and stops vermin from entering the cavity.

The different alternative cores offer a high R-Values for thermal efficiency, excellent sound dampening properties and different Fire Ratings. A range of panel thicknesses are available from 50mm up to 200mm with superior spanning capabilities compared to traditional roofing products, AIP Orb helps you create the perfect outdoor lifestyle.

AIP Orb-EPS-FR, AIP Orb-DC and AIP Orb-MW are all CodeMark approved. Please refer to the individual Certificate of Conformity certificates for the details.

AIP Orb-TPC has obtained Factory Mutual Certificate of Compliance covering FM4880, FM4881, FM4882 and FM4471.

Additional information

Thickness

50mm, 75mm, 100mm, 125mm, 150mm, 175mm, 200mm
Ceiling Colour

Off White, Smooth Cream, Hampton White, Lux, AIPMax, Surfmist
Panel Core Range

EPS – Expanded Polystyrene Fire Retardant Grade, TPC – Insulated core manufactured from Thermal Phenolic Composite, MW – Insulated core manufactured of Mineral Wool, DC – Insulated core manufactured of Dual Core
Roof Colour

Thredbo White, Caulfield Green, Cottage Green, Classic Cream, Basalt, Zinc, Woodland Grey, Windspray, Surfmist, Shale Grey, Paperbark, Pale Eucalypt, Monument, Manor Red, Jasper, Ironstone, Dune, Deep Ocean
Panel Cutbacks

LHCB, RHCB
